AddUserInformation(Byte,Byte[]) Method

Appends a User-defined item to the DICOM Associate.

Syntax

C#
Visual Basic
WinRT C#
Objective-C
Java
WinRT JavaScript
C++

public void AddUserInformation(
   byte type,
   byte[] data
)

'Declaration

Public Overloads Sub AddUserInformation( _
   ByVal type As Byte, _
   ByVal data() As Byte _
)

'Usage

Dim instance As DicomAssociate
Dim type As Byte
Dim data() As Byte

instance.AddUserInformation(type, data)

public void AddUserInformation(
   byte type,
   byte[] data
)

 function Leadtools.Dicom.DicomAssociate.AddUserInformation(Byte,Byte[])(
   type ,
   data
)

public:
void AddUserInformation(
   byte type,
   array<byte>^ data
)

Parameters

type: Type of the User-defined item.
data: Buffer that contains the data for the User-defined item.

Remarks

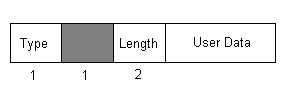

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is

where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.

Example

For an example, refer to IsRoleSelect.
